MEGAMO UPON 15 CW AVINOX DROP BAR
Brand new high specification electric road bike with mid drive Avinox motor.

Drop bar version

KEY FEATURES

· Full Carbon Frame with Integrated Battery, Mid-drive Motor, Internal Cable Routing
· Avinox M2S Motor -150Nm 1300W (Boost Mode) / 130Nm 1500W
· 600 Wh Battery
· Shimano 105 Di2 R7150 12-speed Drivetrain
· Vision SC48 i25 Carbon Wheels

DESIGNED TO CLIMB

THE E-ROAD THAT REDEFINES CLIMBING

The UPON is not a road bike with a motor. It is a bike designed from scratch so that every component works together: the frame, the cockpit and the groupsets respond to the same goal, giving you total control over the asphalt.

ROAD GEOMETRY.

The UPON's geometry is not a compromise between comfort and performance. It is a statement. Long reach, low BB and a 27.2 seatpost that absorbs the asphalt without losing a single watt.

Four sizes, one same answer: fast, controlled and with that feeling of a bike that rides itself when the road calls for it.

Upon is born with a concrete obsession: preserving the purity of the asphalt when technology disappears. Pure road geometry, invisible Avinox motor assistance and total integration in every component.

Upon's DNA is summarised in four ideas. Each one drives an engineering decision — from the carbon layup to the geometry of the main triangle. Four words that, combined with the Avinox motor, shape a road bike designed for a single purpose: climb faster, go further.

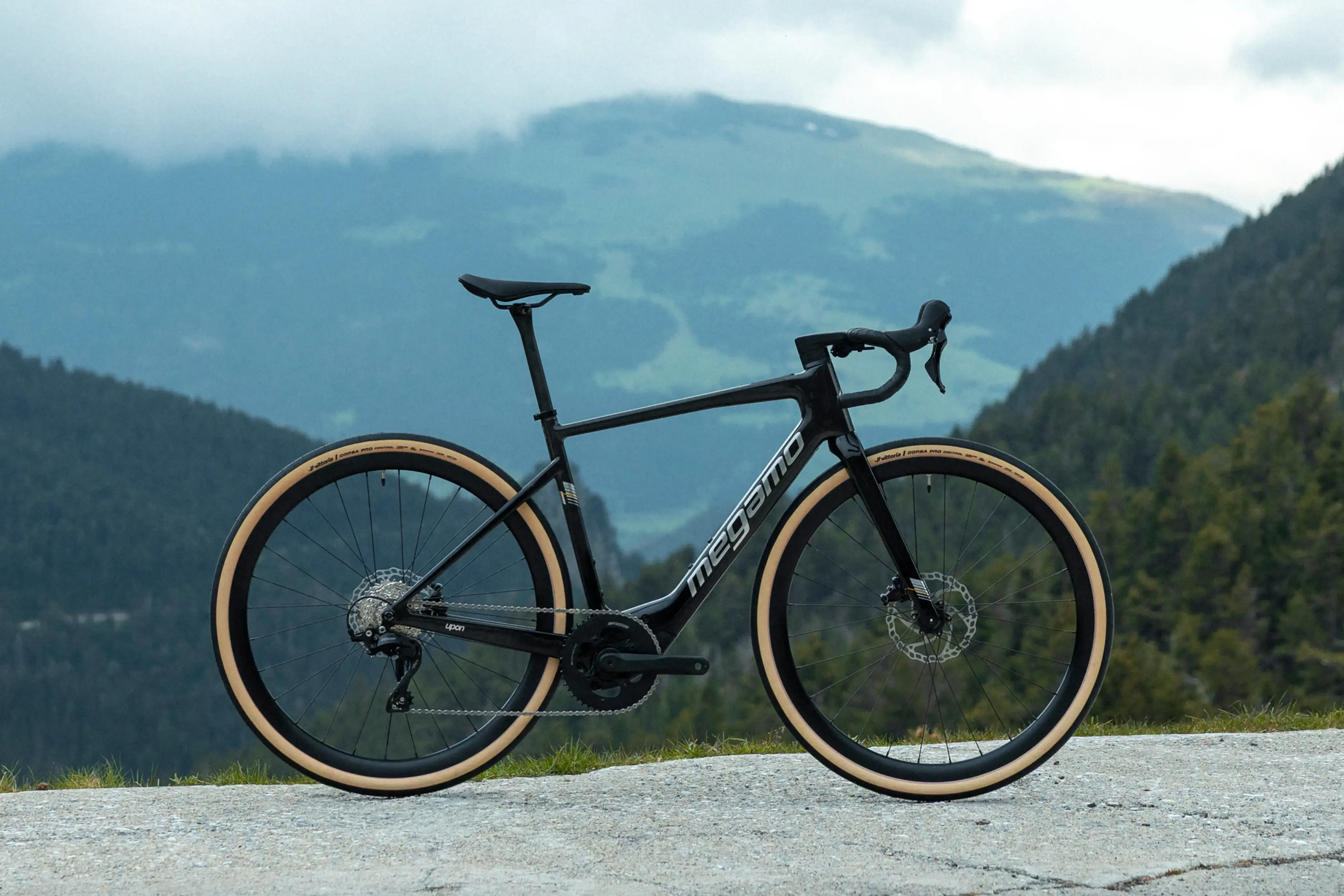

MEGAMO UPON 15 CW AVINOX DROP BAR

£5,999.00Price
Colour
Quantity
Pre Order Please Ask for Delivery Timescales

  • TECHNICAL INFORMATION

    ×

     Frameset

      Frame Upon Carbon Frame, Full Integratted Battery, Central motor, Internal Cable Routing, Flat Mount Disc 12 x 142 mm
      Fork Upon Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12 x 100 mm
      Headset FSA Internal Cable Routing

     Electronic components

      Motor Avinox M2 -110Nm 1100W
      Battery Avinox 600 Wh, 35,9V, IP56
      Display Avinox DPC100, 2-inch OLED display
      Charger Avinox 4A Charger

     Drivetrain

      Rear Derailleur Shimano 105 R7100, Shadow 12-Speed
      Shifters Shimano 105 R7120
      Cassette Shimano HG710, 11-36T

     Brakes

      Brakes Shimano 105 R7120, RT-CL700 180 mm

     Wheels

      Tires Vittoria Corsa Pro Control 42c
      Wheels Megamo All Road AL HG

     Components

      Handlebar Carbon Full Integratted Internal Cable Routing / S size 80 x 380 mm / M, L size 90 x 400mm / XL size 110 x 420
      Seatpost Megamo Carbon Ø 27.2 mm / S, M size 350 mm / L, XL size 420 mm
      Seat Selle Royal SRX Open

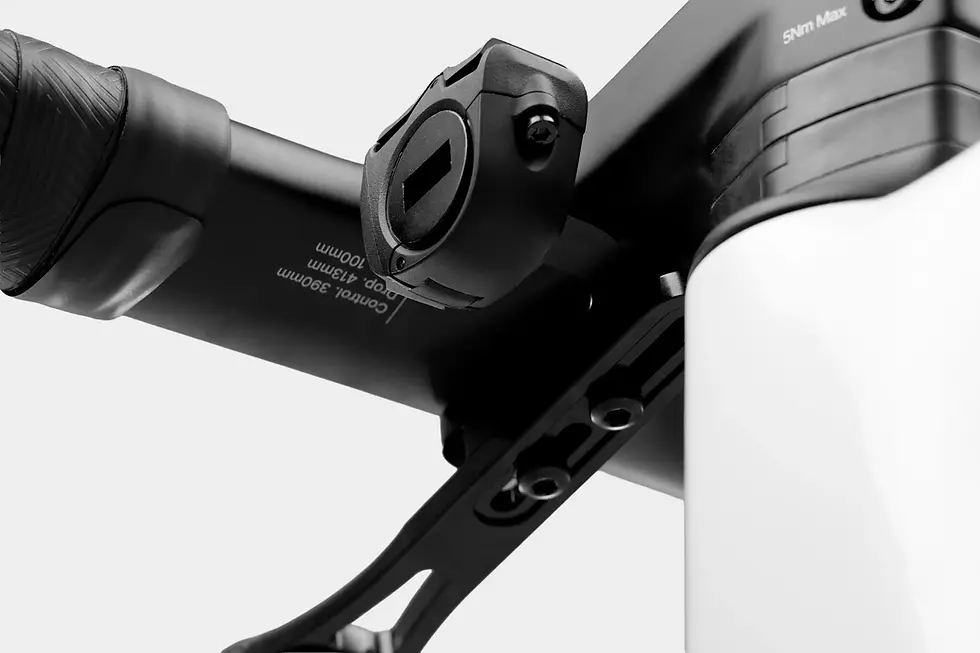

      Accessories Megamo Cycle Computer Mount
